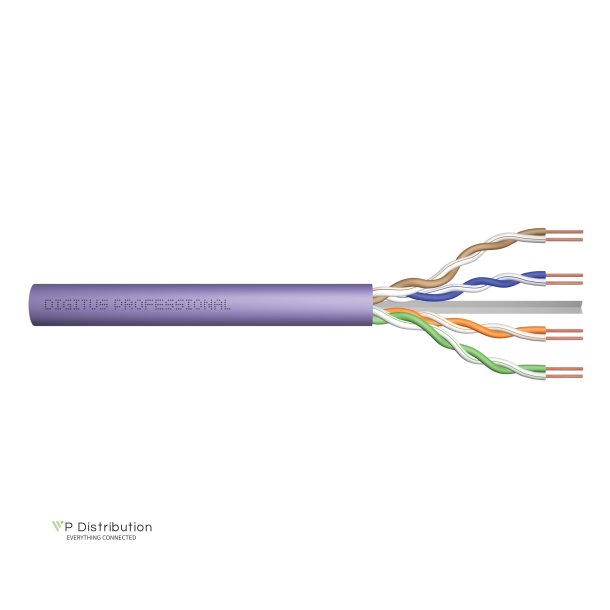

CAT 6 U-UTP installation cable, 250 MHz Eca (EN 50575), AWG 23/1, 305 m paper box, sx, pu

• Assortment: Twisted Pair Installation Cables • Category: CAT 6 • Shielding: U-UTP, unshielded • CPR: Eca • Length: 305 m • Color: violet • Jacket: LSOH • Structure: 4 x 2 AWG 23/1, solid twisted pair • Physical properties: • Conductor: Bare copper wire, AWG 23/1 • Insulation: HD-PE (High Density Polyethylene) • Total number of insulated conductors: 8, twisted into 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Shielding of the individual pairs: None • Overall shielding: None • Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH • Outer sheath thickness nominal): 0.5 mm (Eca); 0.6 mm (Dca); 1.0 mm (Cca); 1.0 mm (B2ca) • Outer casing color: Violet (RAL 4005) • Mechanical properties: • Strain relief: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Transport and storage temperature range: -20 °C to +60 °C • Operating temperature range: -20 °C to +75 °C • Installation temperature range: 0 °C to +50 °C • Outer diameter simplex (nominal): 6.1 mm (Eca); 6.3 mm (Dca); 6.8 mm (Cca); 6.8 mm (B2ca) • Weight (kg/km): 41 kg (Eca); 42 kg (Dca); 44 kg (Cca); 44 kg (B2ca) • Electrical properties: • Impedance: 100±5Ohm @ 1 - 250MHz • Capacitance: 40 pF/m nominal @ 800 Hz • Capacitance unbalance (pair-earth): 1.5 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • Loop resistance: 147 Ohm/km max. (2% max. unbalanced resistance) • Operating voltage: 72 Vdc max. • Coupling attenuation: CA-Type 3 • Phase delay: 535 nS/100 m max. • Time delay: 20 nS/100 m max. • Isolation class: "b" according to EN 50174-2 • NVP: 69%
