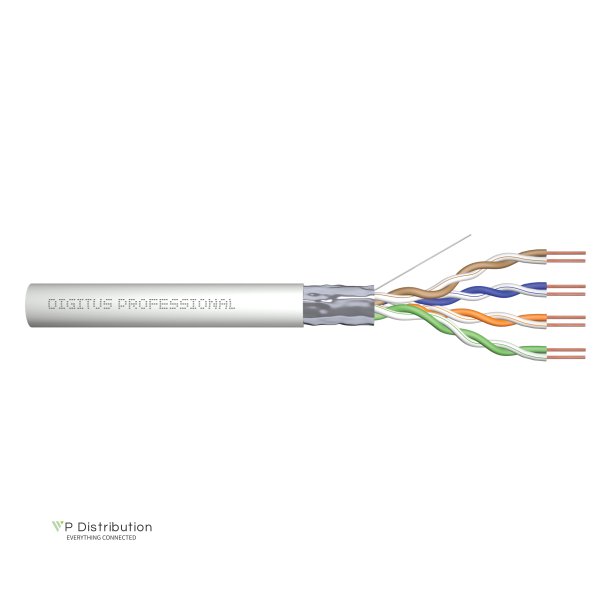

CAT 5e F-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey

CAT 5e F-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey

Du skal være logget ind for at kunne lave bestillinger

Varenr.: DK-1521-V-305
Leveringstid: Cirka. 2-4 dage i leveringstid
The Digitus® Cat.5e F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 100 MHz. The PVC cable jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1.
  • Beskrivelse
    • Assortment: Twisted Pair Installation Cables • Category: CAT 5e • Shielding: F-UTP, foil shielding • CPR: Eca • Length: 305 m • Color: grey • Jacket: PVC • Structure: 4 x 2 AWG 24/1, solid twisted pair • Physical properties: • Conductor: Bare annealed copper, solid AWG 24/1 • System/s of AVCP: AVCP 3 • Insulation: PE (Polyethylene) • Total number of insulated conductors: 8, twisted in 4 pairs • Color code: Blue-white, orange-white, green-white, brown-white • Individual pair shielding: None • Overall shielding: Foil shielded, drain wire • Overall sheath: Eca acc. to EN 50575; PVC • Outer sheath diameter (nominal): 0.55 mm nominal • Outer sheath color: Grey (RAL 7035) • Mechanical properties: • Tensile loading: 150N max. • Dynamic bending radius: 8x AD mm min. • Static bending radius: 4x AD mm min. • Shipping- and storage temperature range: -20 °C up to +75 °C • Operating temperature range: -20 °C up to +60 °C • Installation temperature range: 0 °C up to +50 °C • Overall diameter Simplex (nominal): 6.1 mm nominal • Electrical properties: • Impedance: 100±5 Ohm @ 1-100 MHz • Capacitance: 40 pF/m nominal @ 800 Hz • Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz • Insulation resistance: 5 GOhm x km min. • DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance) • Voltage resistance: 72 Vdc max. • Coupling attenuation: CA-Type 3 • Signal propagation delay: 535 nS/100 m max. • Propagation delay: 20 nS/100 m max. • Separating class: ,,b" acc. to EN 50174-2 • NVP: 69%
  • Specifikationer
    Farve Grey
    Længde 300m
    Cable Standard Cat5e
